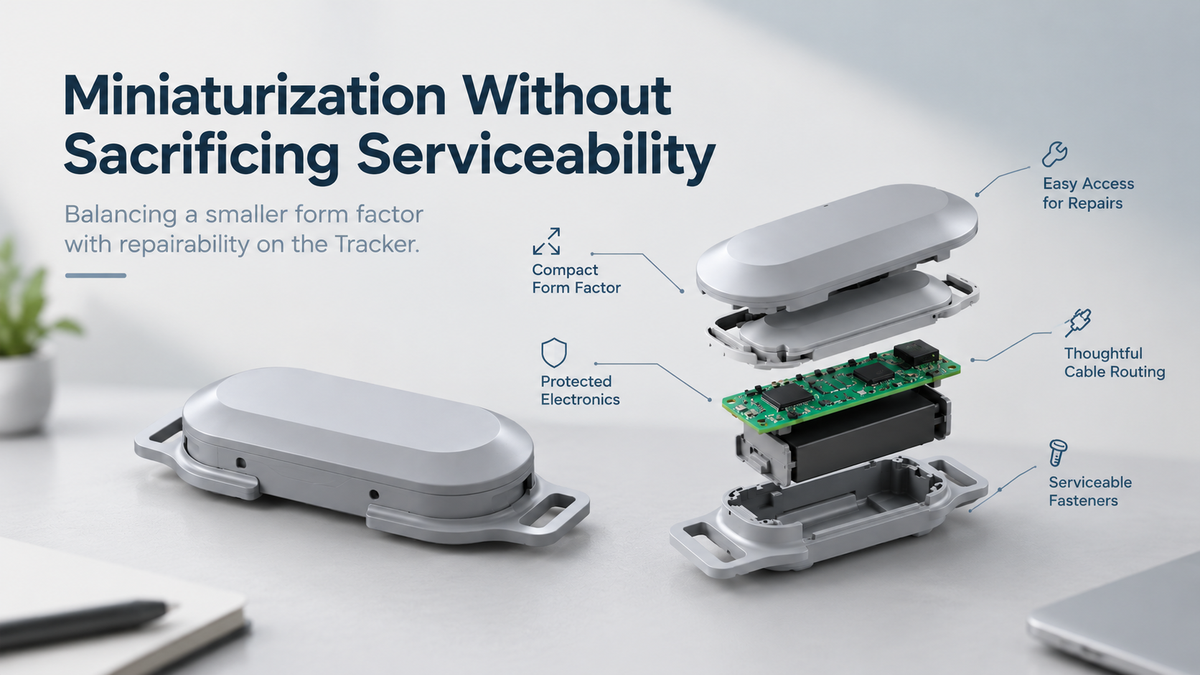

Miniaturization Without Sacrificing Serviceability

Balancing a smaller form factor with repairability on the Tracker.

Miniaturization usually gets treated as a packaging exercise: shrink the dimensions, squeeze the components into a tighter enclosure, make the product look more compact. In a real hardware product, though, reducing size changes a lot more than the outside shape. It affects how components are mounted, how cables are routed, how heat gets out, how fasteners can be reached, and how easily the product can be assembled or repaired.

On the Tracker at Hoomanely, that trade-off matters a lot. The device packs mechanical structure, electronics, sensing components, and an enclosure into very little space, and every millimetre saved has to be weighed against the room needed to assemble, inspect, and service those parts. The goal was never just making the Tracker smaller. It was making it compact without ending up with something that's a pain to maintain.

The challenge: every millimetre has a cost

Early in development, adding space is easy. You move a component, reposition a connector, add a screw to simplify assembly. As the design tightens up, those options disappear one by one, and a small change in component placement can set off a chain of downstream problems: a connector that's hard to reach during assembly, a screw that can't be accessed with a standard tool, a PCB that has to come out before another part can be replaced, a cable forced into a tighter bend than its geometry comfortably allows, a fastener trapped behind a structural component, or an enclosure that has to be partly taken apart just to get at something that could otherwise be serviced on its own.

Any one of those looks minor. Together they add assembly time, complicate repairs, and make the product less practical to maintain. The distinction that matters is between reducing physical volume and reducing functional complexity. A smaller enclosure isn't a better design if every internal operation gets harder.

Designing the internal architecture before finalizing the enclosure

The most effective way to approach miniaturization is to treat internal architecture and external dimensions as connected decisions. Instead of locking the enclosure and cramming components into whatever space is left, we look at the physical needs of each subsystem from the start. For the Tracker, that means evaluating PCB placement, sensing hardware, mounting interfaces, connectors, and enclosure fasteners together. Three things matter most.

1. Component placement and access

The smallest possible component arrangement isn't always the most practical one. Components need room not just for their own dimensions but for installation and removal. A connector might fit inside the enclosure in CAD and still need extra clearance for fingers, a tool, or the mating cable.

When evaluating a compact layout, we walk through the whole service operation: identify the component that needs attention, work out which enclosure parts have to come off, check whether it can be disconnected without disturbing neighboring hardware, and confirm it can come out and go back in without damaging cables, connectors, or mounting features. That exercise tends to surface constraints a standard interference check misses.

2. Fasteners and assembly sequence

Fasteners take up more than the volume of the screw. They need tool access, insertion clearance, and room for the assembly motion itself. Moving a PCB closer to an enclosure wall might save a few millimetres of internal width, but if it blocks access to a mounting screw, the assembly sequence has to change, which can mean extra disassembly steps or having to install the PCB before parts that would otherwise go in first. A compact design should be judged on its actual assembly sequence, not just its final assembled geometry.

3. Cable routing and connector clearance

Cable routing is another place miniaturization creates hidden costs. Cables need proper bend radii, strain relief, and clearance from moving or sharp-edged parts, and connectors need room to mate and unmate. When a compact layout forces a cable into an awkward route, assembly gets less repeatable and the risk of damage goes up. It works better to reserve cable corridors and connector access zones in the initial layout and treat them as functional requirements, not leftover volume.

The serviceability trade-off

Serviceability is easy to overlook when the main goal is shrinking dimensions, and it matters much more once a product has several integrated subsystems. A useful way to evaluate the design is to separate components that should stay installed for the product's whole life from those that might need inspection, replacement, or adjustment. A structural part that rarely needs replacing can reasonably sit deeper in the assembly. A connector, battery, or replaceable electronic module might justify extra clearance if that space makes maintenance noticeably simpler. The right call depends on expected failure modes, replacement cost, and the intended service process.

Take two hypothetical layouts:

Neither is automatically better. Layout A might be right for a sealed, non-serviceable product, and Layout B might be right when individual components are expected to be replaced. The decision should follow the product's maintenance strategy, not a blanket preference for smaller dimensions.

Measuring miniaturization beyond external dimensions

To make the trade-off objective, you need to measure more than final enclosure size. Two useful metrics are volume reduction and mean time to repair (MTTR).

Volume reduction

Cutting the relevant enclosure volume from 1,000 cm³ to 850 cm³ is a 15% reduction. That's a hypothetical example, not a measured Tracker result, just to show how to quantify the packaging benefit. It's also worth defining which volume you're comparing, since external bounding-box volume, internal usable volume, and the volume actually occupied by components are three different measurements. Whichever one you pick should stay consistent across design iterations.

Mean time to repair

MTTR is the average time needed to bring a failed unit back to working condition, though the exact definition depends on which repair activities you count:

For a hardware product, that could include diagnosis, disassembly, component replacement, reassembly, and functional verification. If a component replacement takes 20 minutes in the original design and 12 minutes after an architectural change, repair time dropped by 40%. Again, those are illustrative numbers, not actual Tracker results.

Tracking both metrics helps tell a genuinely better design apart from one that just takes up less space. A successful redesign should deliver a real packaging benefit without a disproportionate maintenance cost.

A practical design review before freezing the layout

Before committing to a compact internal architecture, a short review can catch serviceability problems while changes are still cheap:

• Access: Can every serviceable connector, fastener, and replaceable component be reached?
• Assembly: Can the product be assembled in a logical sequence without repeatedly removing installed parts?
• Cables: Are bend radius, strain relief, and connector clearance maintained?
• Replacement: Can a failed component come out without damaging adjacent parts?
• Tolerance: Does the layout leave enough clearance for manufacturing variation and assembly misalignment?
• Validation: Has the design been checked on a physical assembly, not just in CAD?

That last point matters because a model can prove geometric feasibility without proving that a person can actually perform the operation comfortably or consistently. A physical build should validate the most constrained operations before the enclosure geometry is frozen.

How this shows up at Hoomanely

At Hoomanely, the Tracker brings mechanical design, electronics, sensing, and product integration together in one compact device, which makes miniaturization a systems-level problem rather than an isolated enclosure exercise. The aim is technology that works reliably in everyday use and is still practical to manufacture and maintain. Decisions about component placement, fastening, and service access contribute to that just as much as external dimensions do.

A compact product shouldn't demand disproportionate effort to assemble or repair. Evaluating volume, access, and maintenance together lets us make size reductions that actually improve the product instead of just crowding its insides.

Key takeaways

• Miniaturization is an architectural decision. Shrinking the enclosure affects component placement, assembly sequence, cable routing, and service access.
• CAD fit isn't assembly feasibility. Tool access, connector mating, and component extraction all need to be considered too.
• Design serviceability in early. Retrofitting access after the layout is frozen can force expensive mechanical changes.
• Measure both physical and operational outcomes. Volume reduction shows the packaging benefit, and MTTR reveals the maintenance cost.
• Optimize the whole product. The best design isn't necessarily the smallest one. It's the one that balances compactness, reliability, manufacturability, and maintainability.

A successful miniaturization effort strips out the space you don't need while keeping the space you need to build, maintain, and repair the product.
