Building a Minimal Yocto Image

Abhinav Singh

17 Nov 2025 — 5 min read

Introduction

Every embedded Linux engineer eventually reaches the same point: the need for a fully customized, lightweight, reproducible Linux distribution. Prebuilt OS images are bloated; build-from-scratch distros are fragile. Yocto Project solves this by giving you a structured framework to craft a Linux system that is exactly as big as it needs to be and no bigger.

At Hoomanely, where we design modular, multi-SOM IoT pet-care systems (gateway SOMs, sensor SOMs, camera nodes, LoRa bridges), minimal images are essential. A smaller root filesystem means faster OTA updates, lower flash wear, lower memory pressure, and predictable behavior across devices.

This article is a practical and corrected deep-dive into building a minimal Yocto image, focusing on layers, recipes, image definitions, and the critical sanity checks that make your build reproducible.

Why Minimal Images Matter

Minimal images reduce:

Boot time (userspace can start within ~1–2 seconds)
RAM footprint
Attack surface
Update bandwidth
Flash wear
Failure modes related to unused services

Typical size ranges (accurate and non-contradictory):

core-image-minimal: ~25–40 MB
Optimized custom minimal: ~15–25 MB (musl, stripped binaries, no locales, no docs, no static libs)

These numbers match real-world Yocto builds on Kirkstone/Scarthgap.

For Hoomanely products deployed in fields and homes , these deltas are huge every MB removed means faster updates and longer device life.

Yocto in Three Bullet Points

Yocto is:

A build framework, not a distribution.
A metadata system: layers → recipes → tasks → packages → images.
A collection of classes (image classes, kernel classes, packaging classes).

Its core toolchain:

BitBake (task executor)
OpenEmbedded Core
Poky (reference distro)
BSP layers (board-specific Linux support)

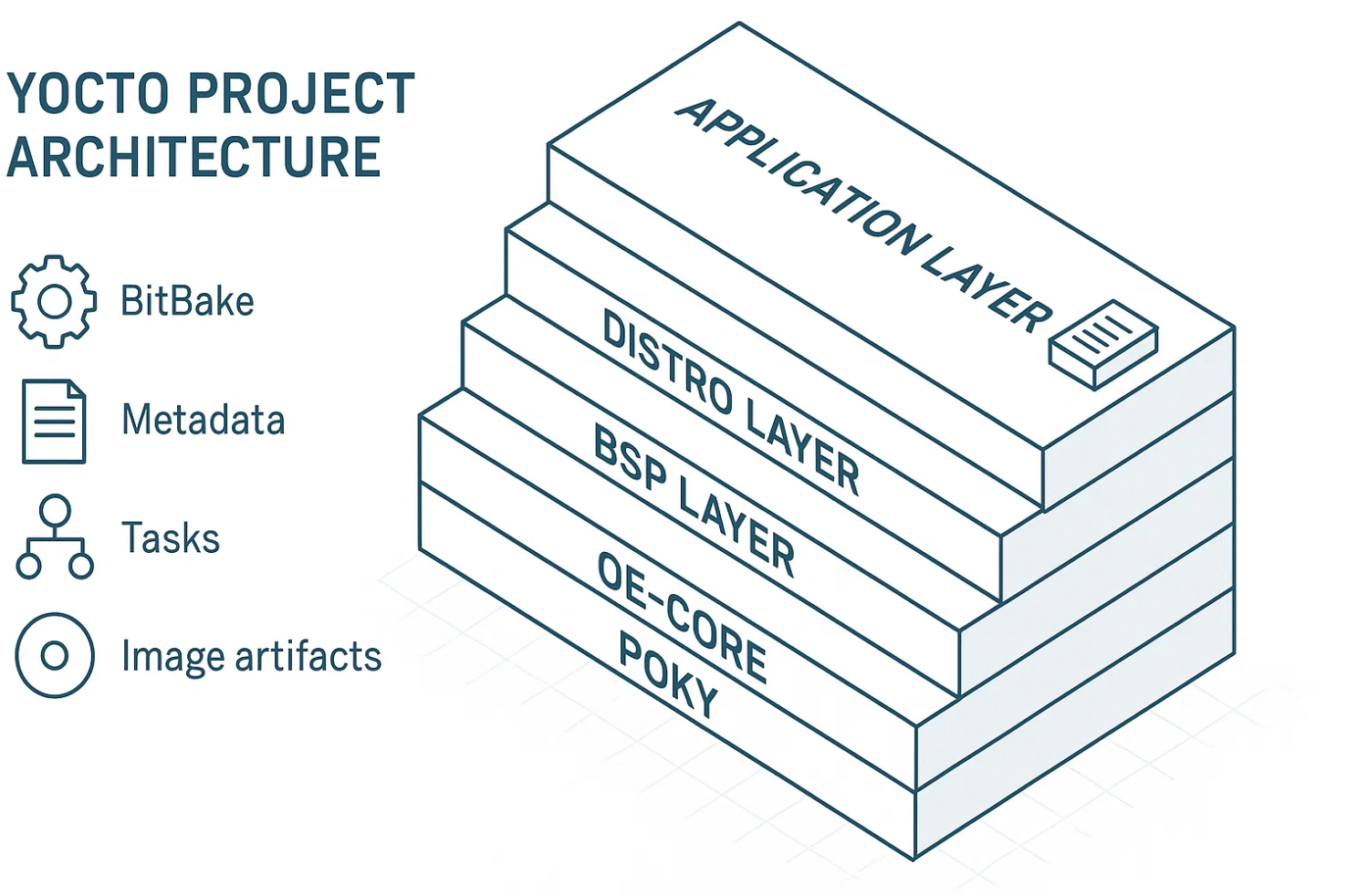

Understanding Layers & Recipes

Layers

A layer is a container of metadata and recipes. Typical structure:

meta/                  # OE Core (base)
meta-poky/             # reference distribution
meta-yocto-bsp/        # generic BSPs
meta-yourboard/        # hardware-specific BSP
meta-yourproduct/      # application, configs, image definitions

A layer must declare compatibility:

LAYERSERIES_COMPAT_meta-myproduct = "kirkstone scarthgap"

This protects builds from mismatched Yocto versions.

Recipes

A recipe (.bb) defines:

Source fetching
Dependencies
Build steps (do_compile)
Installation steps (do_install)
Licensing
Packaging

Correct minimal recipe example:

SUMMARY = "Hello World App"
LICENSE = "MIT"
LIC_FILES_CHKSUM = "file://${COMMON_LICENSE_DIR}/MIT;md5=0835ade698e0bcf8506ecda2f7b4f302"

SRC_URI = "file://main.c"
S = "${WORKDIR}"

do_compile() {
    ${CC} ${CFLAGS} ${LDFLAGS} main.c -o hello
}

do_install() {
    install -d ${D}${bindir}
    install -m 0755 hello ${D}${bindir}
}

This is fully compliant with Yocto's licensing and build workflows.

Building the Minimal Image

Step 1 Clone Poky

git clone git://git.yoctoproject.org/poky
cd poky
git checkout kirkstone

Kirkstone is stable LTS.

Step 2 Set Up the Build Environment

source oe-init-build-env

This creates:

build/conf/local.conf
build/conf/bblayers.conf

Step 3 Create a Custom Layer

bitbake-layers create-layer ../meta-myproduct
bitbake-layers add-layer ../meta-myproduct

Now edit:

meta-myproduct/conf/layer.conf

LAYERSERIES_COMPAT_meta-myproduct = "kirkstone"

Step 4 Create a Minimal Image Recipe

Instead of redefining everything, inherit core-image and extend:

meta-myproduct/recipes-core/images/myproduct-minimal-image.bb

DESCRIPTION = "Hoomanely minimal image"
LICENSE = "MIT"

inherit core-image

# core-image already includes busybox (via packagegroup-core-boot)
IMAGE_INSTALL:append = " dropbear "

# Drop unnecessary features
IMAGE_FEATURES:remove = "splash package-management x11-base"

# Optional: ultra-minimal tuning
# IMAGE_INSTALL:remove = "packagegroup-core-boot"
# IMAGE_INSTALL:append = "busybox base-passwd dropbear kernel-modules"

This is the correct way to build a minimal image without fighting the class inheritance system.

Step 5 Set the Machine

local.conf:

MACHINE = "qemux86-64"
DISTRO ?= "poky"

For physical hardware:

raspberrypi4
beaglebone
custom Hoomanely SOMs

Step 6 Configure the Init System Correctly

Modern Yocto recommends using:

DISTRO_FEATURES:remove = "systemd"
DISTRO_FEATURES:append = " sysvinit"

INIT_MANAGER = "sysvinit"

If using BusyBox for init + mdev:

INIT_MANAGER = "mdev-busybox"

Notes:

VIRTUAL-RUNTIME_init_manager is legacy and should be avoided.
Just removing systemd does not automatically switch to BusyBox you must adjust the distro features.

This corrects one of the most common misconfigurations.

Step 7 Build

bitbake myproduct-minimal-image

Outputs go to:

build/tmp/deploy/images/<machine>/

Artifacts include:

.wic SD card image
Kernel (bzImage/uImage)
Device tree (.dtb)
RootFS tarball

Sanity Checks:

Yocto prevents invalid builds with strict validation.

Common sanity issues

1. Missing host packages

Install required tools (gcc, chrpath, diffstat, python3, etc.).

2. Layer compatibility mismatch

Fix via:

LAYERSERIES_COMPAT_meta-myproduct = "kirkstone"

3. Insufficient disk space

Realistic requirements:

First build: 50–100 GB
Incremental builds: 20–30 GB
Minimal image w/ populated sstate: 15–20 GB

4. Stale sstate-cache

Fix many strange errors with:

rm -rf sstate-cache/*

Kernel Configuration

To add kernel configs, create:

recipes-kernel/linux/linux-yocto_%.bbappend

FILESEXTRAPATHS:prepend := "${THISDIR}/files:"

SRC_URI += "file://myfragment.cfg"

files/myfragment.cfg:

CONFIG_SPI=y
CONFIG_I2C=y
CONFIG_USB_ACM=y

This is the complete integration flow.

Optimizing Your Minimal Image

These optimizations are technically accurate and safe.

Remove docs, locales, static libs

IMAGE_LINGUAS = "en-us"
GLIBC_GENERATE_LOCALES = "en_US.UTF-8"

Use musl for smaller libc

TCLIBC = "musl"

Strip binaries

Enabled by default:

INHIBIT_PACKAGE_STRIP = "0"

Conserve build host disk space (rm_work)

INHERIT += "rm_work"

Note: This does NOT shrink the final rootfs it only reduces build disk usage.

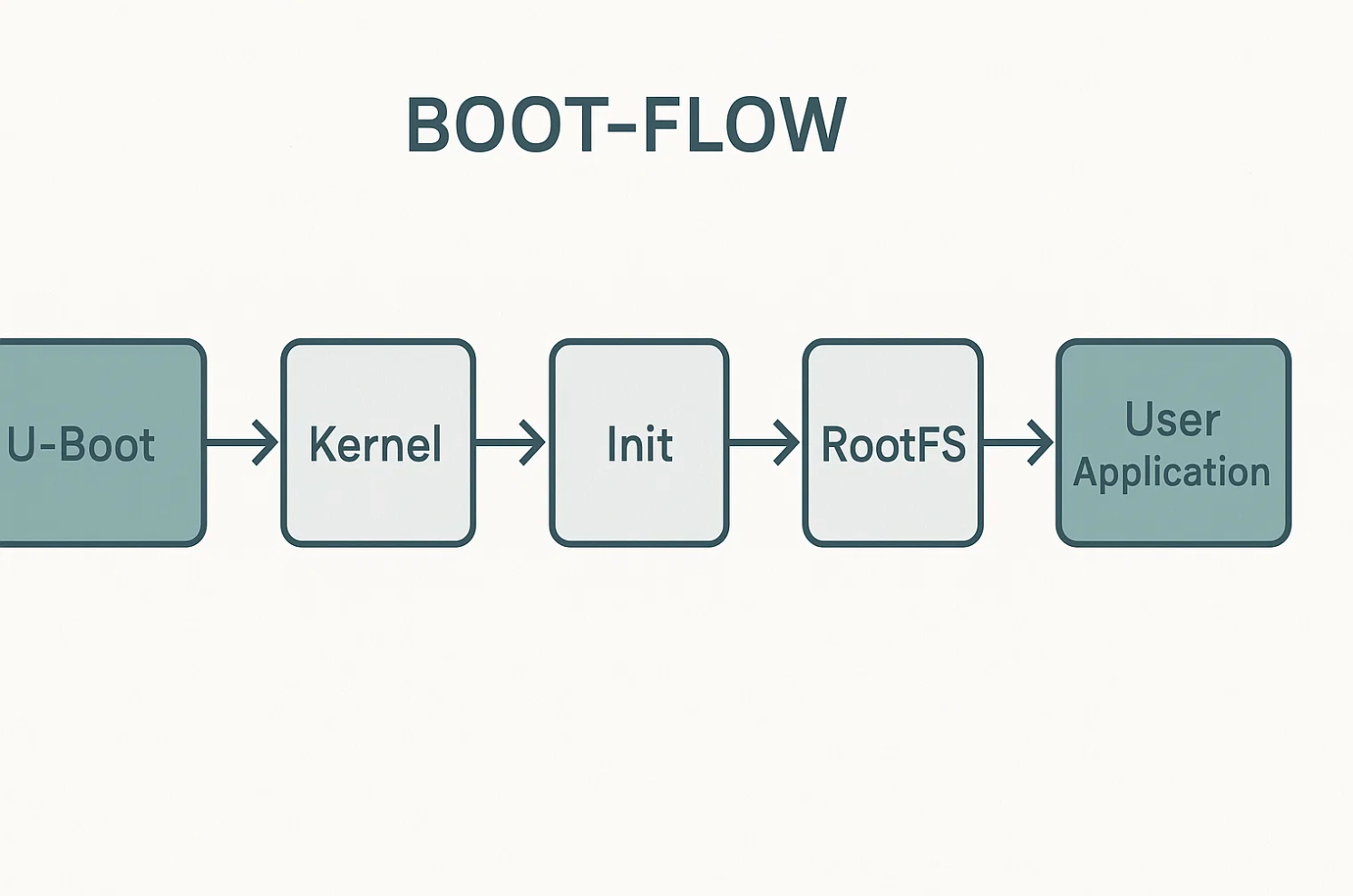

Boot Time

Userspace init can complete in <2 seconds on a minimal image.
Total boot time (U-Boot → kernel → shell) is typically 5–15 seconds on most SBCs.

Ultra-fast boots (<2 seconds total) require:

U-Boot tuning
Minimal driver probing
Kernel config optimization
Initramfs techniques

Debugging the Build

Yocto debugging requires understanding BitBake logs.

Useful debugging commands:

bitbake -e recipe            # environment variables
bitbake -c clean recipe      # clean build
bitbake -c cleanall recipe   # remove downloaded sources too
bitbake -g recipe            # dependency graph

Log locations:

build/tmp/work/<recipe>/<version>/temp/log.do_compile
build/tmp/work/.../log.do_install

Common Issues Engineers Face

1. "Nothing Provides "

Occurs when:

Required layer is missing
Recipe name is wrong
Distro configuration excludes it

Fix by adding proper layer via:

bitbake-layers add-layer /path/to/layer

2. Build takes too long

Use sstate-cache (shared state cache) between builds.

You may also add:

BB_NUMBER_THREADS ?= "8"
PARALLEL_MAKE ?= "-j 8"

3. Kernel missing modules

Create a config fragment as shown in the "Kernel Configuration" section above.

4. Image boots but no shell

Check:

/sbin/init exists
Virtual init system is correct
BusyBox built with CONFIG_FEATURE_SH

Use:

bitbake busybox -c menuconfig

Key Takeaways

Yocto is a framework, not a distribution power comes from metadata.
Inherit from core-image and modify using :append/:remove.
Don't break the image classes unless you know what you're doing.
Always declare LAYERSERIES_COMPAT.
Use INIT_MANAGER + DISTRO_FEATURES correctly to avoid broken inits.
Minimal images typically land in the 25–40 MB range; aggressively optimized images reach 15–25 MB.
Sanity checks and layer hygiene matter more than any individual recipe.

For Hoomanely, minimal images are key to long-term maintainability and reliable OTA updates across thousands of devices.
